Eight Station Granule Packaging Machine Accurate Weighing 10 Head Combination Scale

Name: Eight Station Granule Packaging Machine Accurate Weighing 10 Head Combination Scale
Brand: ZCHONE PACK
Price: 18000 USD

Wholesale Eight Station Granule Packaging Machine Accurate Weighing 10 Head Combination Scale from china suppliers

Brand Name : ZCHONE PACK

Model Number : Multi-Function Packaging Machine

Certification : ISO,CE

Place of Origin : Guangdong, China

MOQ : 1sets

Price : $18000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1/sets/15

Delivery Time : 15

Packaging Details : Standard export wooden case packaging

Type : Multi-Function Packaging Machine

Driven Type : Pneumatic

Warranty of core components : 1 Year

Main Function : Weighing Filling Sealing

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Other

Function : FILLING, Labeling, Sealing

Packaging Type : Stand-up Pouch, Bags, Pouch

Voltage : 110V 220V 380V 50hz/60hz

Core Components : Motor, Pressure vessel, PLC, Gear, Bearing, Engine, Gearbox

Contact Now

Accurate weighing 10-head combination scale eight-station packaging machine

Machine Specification:

Item	ZC-X8200	ZC-X8250	ZC-X8300
Packing speed	MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc.
Bag size	(L)100-300mm (W)70-200mm	(L)100-350mm (W)130-250mm	(L)150-450mm (W)200-300mm
Bag type	Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag
Weighing range	10g-1kg	10g-2kg	10g-3kg
Measurement accuracy	*≤±0.5~1%, depending on the measuring equipment & materials.
Maximum bag width	200mm	250mm	300mm
Gas consumption	0.8Mpa 0.3m³/min (Supply by user)
Total Powder/Voltage	2.5KW 380V 50/60Hz	2.5KW 380V 50/60Hz	3.7KW 380V 50/60Hz
Air compressor	Not less than 1CBM
Dimension	L1900W1400H1450	L1900W1400H1450	L2000W1500H1550
Machine Weight	1300kg	1400kg	1500kg
Work flow	Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products.
Applicable scope	Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc

(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)

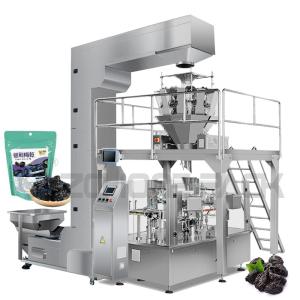

The eight-station packaging machine is an efficient automatic packaging equipment, which can quickly pack products into packaging bags with consistent specifications, and can realize metering and weighing during the packaging process.

First, we need to put the prune pellets into the hopper of the packaging machine. The 10-head combination scale configured on the packaging machine can automatically measure and weigh according to the preset weight to ensure that the number and weight of prunes in each bag are the same. In this way, after the packaging is completed, we can get a batch of prune granule packaging bags with uniform quality and specifications.

Secondly, the eight-station packaging machine can pack 8 packaging bags at the same time, which greatly improves the packaging efficiency. During the packaging process, we can freely set the size and shape of the packaging bag as needed to meet different needs.

In addition, the eight-station packaging machine also has functions such as automatic waste discharge and automatic alarm to ensure the smooth and safe packaging process. If there is an abnormal situation, the packaging machine will automatically stop and send an alarm so that the problem can be dealt with in time.

In general, the eight-station packaging machine is a very practical automatic packaging equipment, which can greatly improve packaging efficiency and product quality, and can be set freely according to different needs. In terms of packaging prune granules, the eight-station packaging machine equipped with 10 combined scales can realize measurement and weighing, which perfectly meets our needs.
